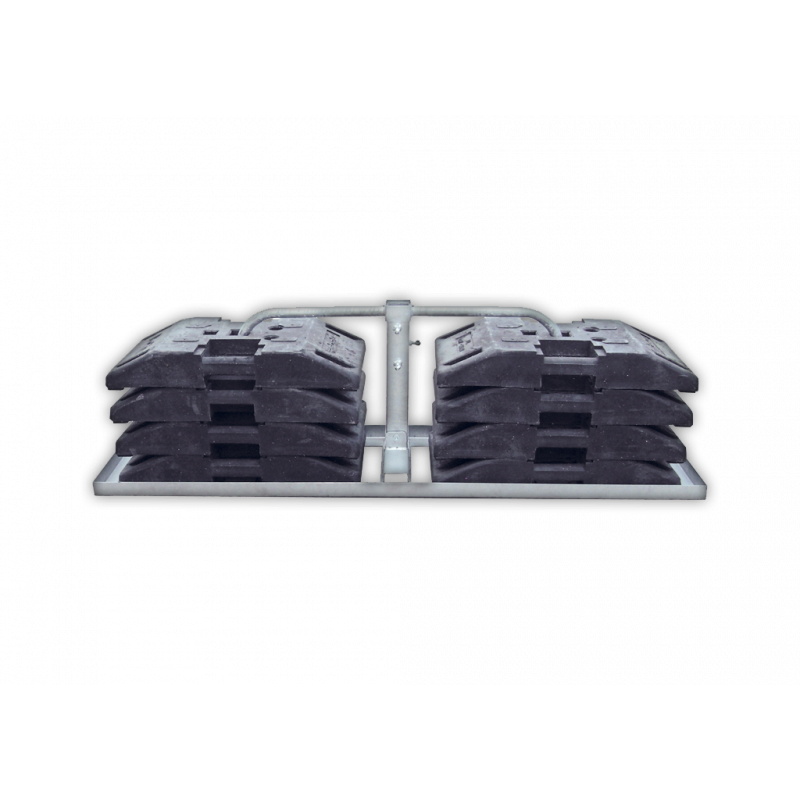

Sign stand TL K8

Mounting device for traffic signs according to TL

Sign stand (galvanized) in weight class K8 for mounting 40 x 40 mm and 60 x 60 mm shaft tubes. Two adjusting screws allow for secure fixing of various shaft tubes. A welded-on bracket enables transport by crane.

For stable positioning, four feet are welded to the underside of the base frame. It can be fitted with up to eight K1 base plates, stacking four on each side. A separate bracket secures the base plates against slippage.

Please refer to the ZTV-SA for installation instructions.

Attention: Footplates are not included in the scope of delivery - please order separately .
