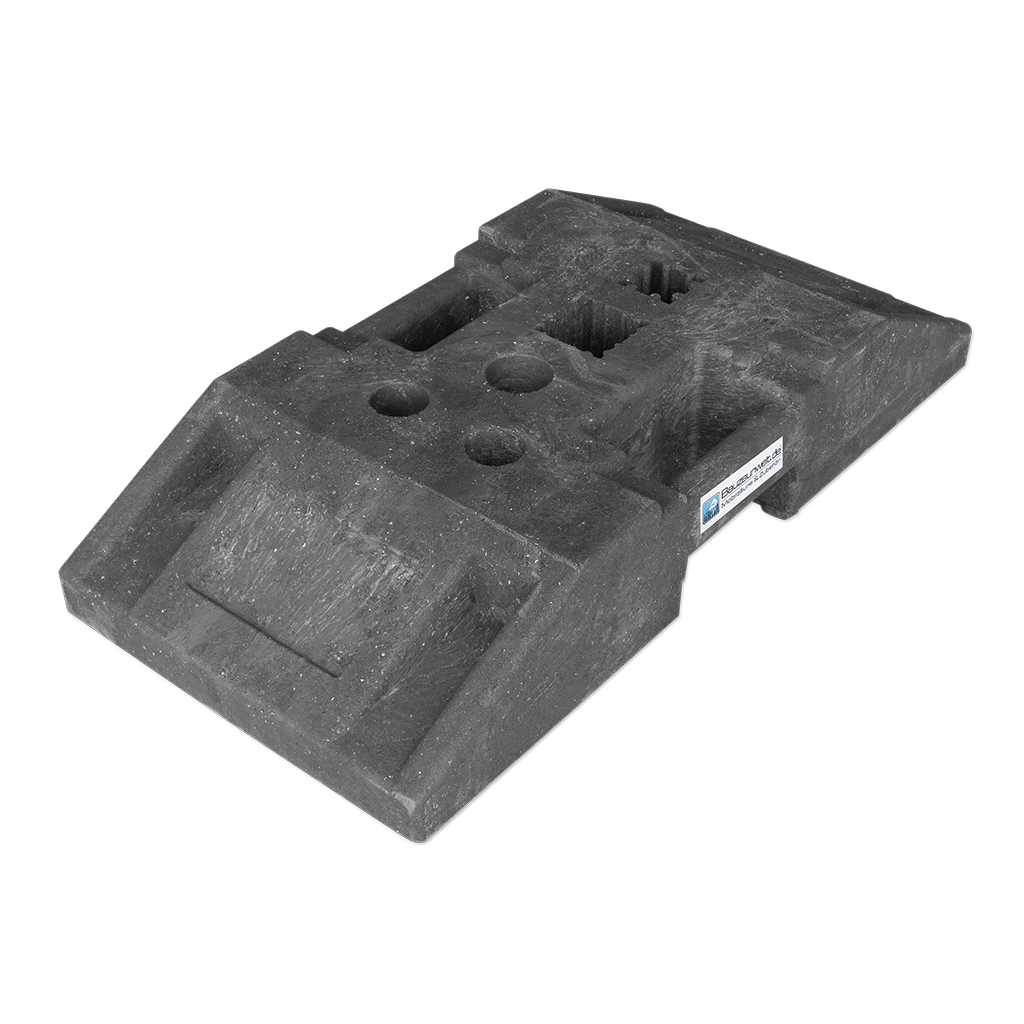

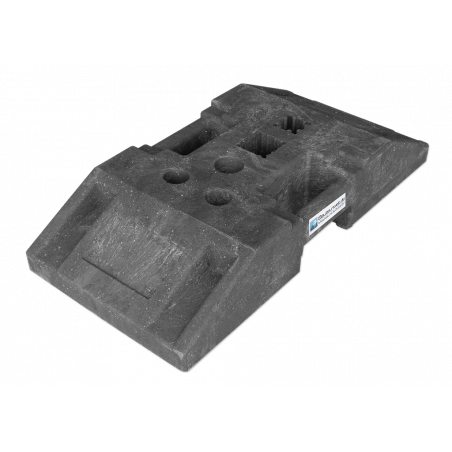

TL footplate 28 kg according to K1 - universally applicable

TL footplate according to K1

Made from recycled materials, environmentally friendly, weighs approximately 28.0 kg

We offer you a TL-compliant footplate made of PVC in the medium version, according to K1.

K1 base plates made of recycled plastic, tested according to TL Aufstellvorrichtungen (TL Mounting Devices) identification K1, comply with the regulations of the ZTV-SA and, due to their high weight, are also an excellent alternative to concrete construction fence bases and the lighter, conventional PE plastic construction fence bases.

Characteristics:
-with side carrying handles for convenient handling.

Slip pockets:
1 pocket: 40 mm x 40 mm, 1 pocket: 60 mm x 60 mm, and 2 pockets: Ø 42 mm

What does K1 mean?

Since 1997, the so-called stability classes have been defined by the ZTV-SA 97 (in combination with the Technical Delivery Conditions for Mounting Devices), which are intended to simplify the safe installation of traffic signs.
The K1 class primarily refers to a base plate that is dimensioned in terms of geometry and weight so that it can withstand a horizontal force of 120N acting on the shaft tube at a height of 1m.
