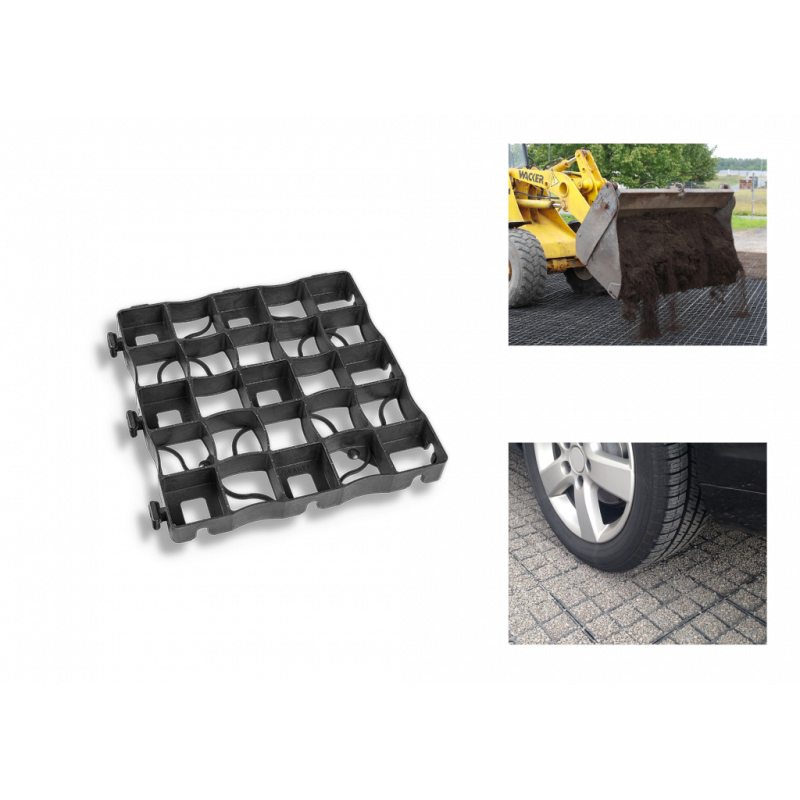

Lawn grid type Grid X

Types

X2

X4

X5

Usable height

20 mm

38 mm

48 mm

Suitable for

Footpaths, cycle paths, green roofs

Parking spaces, property access roads, event areas, campsites, for cars up to 3.5 t

Fire access roads, field paths and parking spaces for trucks, flooring for small airfields and helicopter landing pads

Load capacity unfilled*

50 t/m²

75 t/m²

175 t/m²

dimension

330 x 330 mm (9 grids ≈ 1 m²)

wall thickness

3 mm

3 mm

5 mm

Sealed surface

42%

Weight per m²

3.31 kg

5.39 kg

8.65 kg

Certificates from TÜV Süd, Institute for Plastics

Bridge class 12 for vehicles up to 12t permissible total weight according to DIN 1072

Bridge class 16 for vehicles up to 16t permissible total weight according to DIN 1072

Bridge class 60/30 for heavy goods vehicles up to 60t according to DIN 1072

DIN 14090 "Areas for fire brigades"

material

PE/PP

Temperature range

-50°C to 90°C

Change of shape

1.3% when increasing from room temperature to 80°C

Resistance to

Exhaust fumes, diesel, gasoline, oils, alkalis, road salt, alcohol, organic solvents, ammonia, urine and others
